Model:KXZ-260

Small Rotary Vertical Cartoning Machine


Encasing Speed: 20-50boxes/min
Box quality requirement: 250-450g/m2
Box dimension range: (60-200)mm×(20-80)mm×(20-80)mm

Watch The Video
Encasing Speed: 20-50boxes/min
Box quality requirement: 250-450g/m2
Box dimension range: (60-200)mm×(20-80)mm×(20-80)mm

Watch The Video

Products Description
The Small Rotary Vertical Cartoning Machine is perfect for small - batch, high - precision packaging. In a boutique confectionery, it precisely cartons artisanal chocolates. Its compact design fits into the limited space, ensuring efficient and tidy packaging.
The Small Rotary Vertical Cartoning Machine is a compact yet mighty packaging solution. It rotates products vertically and deftly inserts them into cartons. Ideal for small - scale production, it offers precision and efficiency, fitting snugly into tight workspaces.This innovative machine, with its rotary vertical design, streamlines the cartoning process. Despite its small footprint, it delivers high - speed operation, ensuring accurate and consistent packaging. It's a reliable choice for businesses with limited space but big packaging needs.

Working Process
Products Description
The Small Rotary Vertical Cartoning Machine is perfect for small - batch, high - precision packaging. In a boutique confectionery, it precisely cartons artisanal chocolates. Its compact design fits into the limited space, ensuring efficient and tidy packaging.
The Small Rotary Vertical Cartoning Machine is a compact yet mighty packaging solution. It rotates products vertically and deftly inserts them into cartons. Ideal for small - scale production, it offers precision and efficiency, fitting snugly into tight workspaces.This innovative machine, with its rotary vertical design, streamlines the cartoning process. Despite its small footprint, it delivers high - speed operation, ensuring accurate and consistent packaging. It's a reliable choice for businesses with limited space but big packaging needs.

Working Process
Technical Parameter

Encasing Speed

20-50boxes/min

Box

Quality requirement

250-450g/m2 (according to its dimension to confirm)

Dimension range (L×W×H)

(60-200)mm×(20-80)mm×(20-80)mm

Compressed air

Working pressure

0.5-0.8Mpa

Air consumption

150L/min

Power supply

220V 50Hz

Motor power

1/4HP 15:1

Machine dimension (L×w×H)

1100*1500*1900mm

Machine weight

450KGS

Technical Parameter

Encasing Speed

20-50boxes/min

Box

Quality requirement

250-450g/m2 (according to its dimension to confirm)

Dimension range (L×W×H)

(60-200)mm×(20-80)mm×(20-80)mm

Compressed air

Working pressure

0.5-0.8Mpa

Air consumption

150L/min

Power supply

220V 50Hz

Motor power

1/4HP 15:1

Machine dimension (L×w×H)

1100*1500*1900mm

Machine weight

450KGS

Standard Features

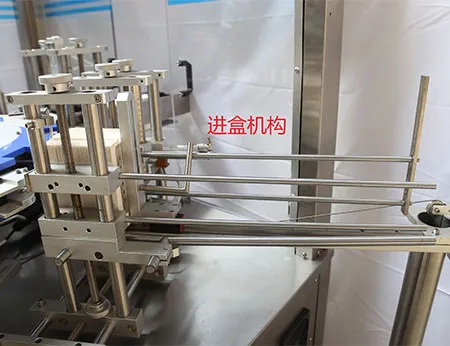

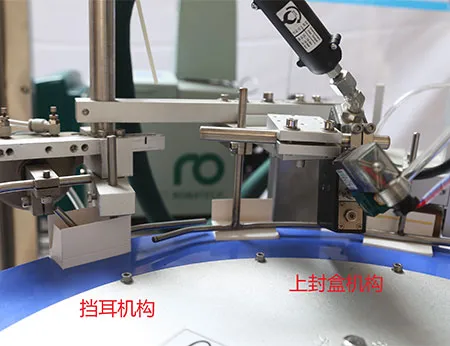

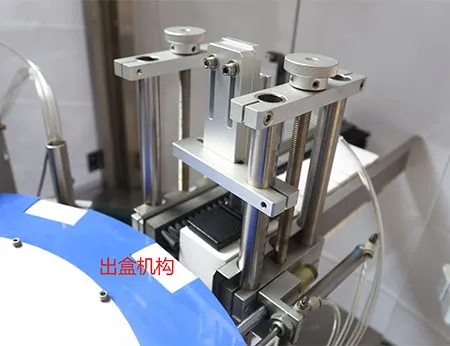

Box out mechanism Ear mechanism and upper box sealing mechanism Box feeding mechanism

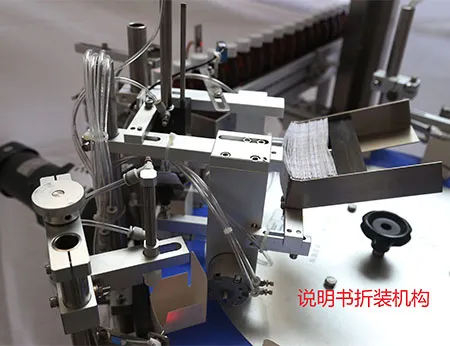

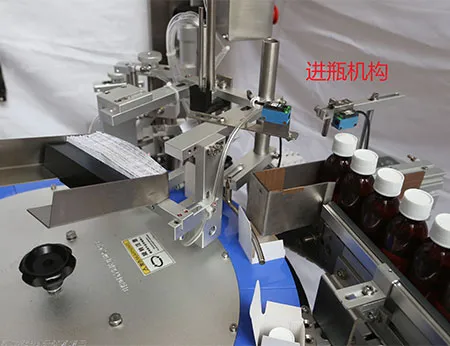

Feeding mechanism Manual Folding

Standard Features

Box out mechanism Ear mechanism and upper box sealing mechanism Box feeding mechanism

Feeding mechanism Manual Folding
