Products Description
The KXZ - 600 Master Carton Packaging Machine is a powerhouse for large - scale packaging. It swiftly constructs and fills master cartons, ensuring high - speed, accurate, and reliable packaging to streamline operations.
The KXZ - 600 excels in large - scale product bundling. In a beverage plant, it rapidly packages cases of bottled drinks into master cartons, optimizing storage and transportation for high - volume distribution.
Products Description
The KXZ - 600 Master Carton Packaging Machine is a powerhouse for large - scale packaging. It swiftly constructs and fills master cartons, ensuring high - speed, accurate, and reliable packaging to streamline operations.
The KXZ - 600 excels in large - scale product bundling. In a beverage plant, it rapidly packages cases of bottled drinks into master cartons, optimizing storage and transportation for high - volume distribution.
Technical Parameter

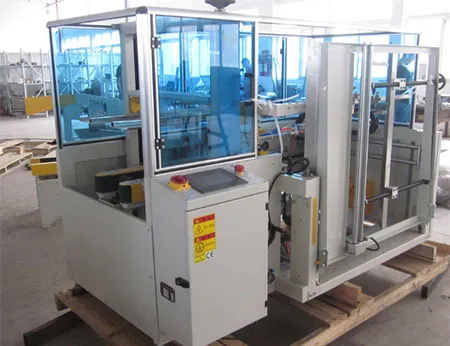

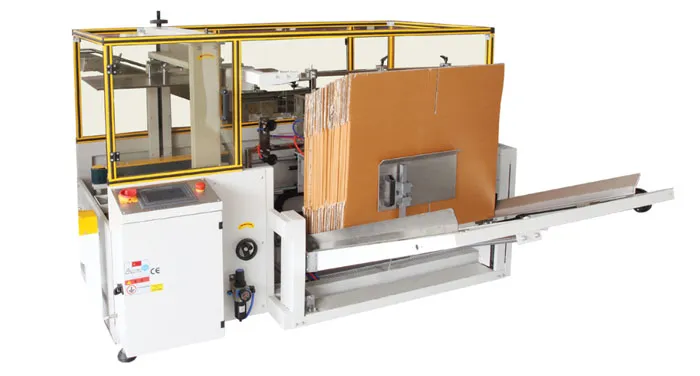

Carton Forming Machine
|
Carton Width |
150-510mm |
 |
|
Carton Height |
100-500mm |
|
|
Carton Length |
200-800mm |
|
|
Overall Dimension |
L2200×W2100×H1500mm |
|
|
Sealing Speed |
10-15box/min |
|
|
Electric |
220V/380V 50/60Hz |
|
|
Air Pressure |
5.5-6kg/cm2 |
|
|
Suitable Tape |
W(48,60,72)mm×L1000y |
|
|
Weight |
400KGS |

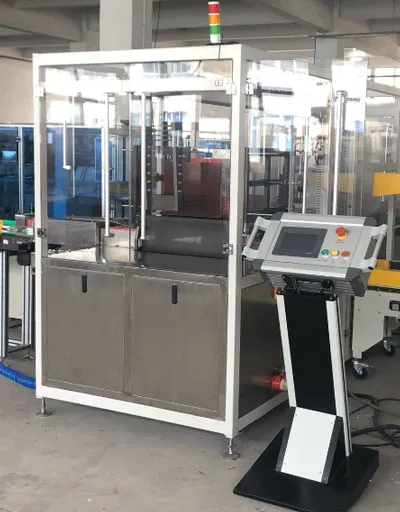

Automatic Carton Filling Machine
|
Carton width |
150mm-500mm |
|
|
Carton height |
100mm-350mm |
|
|
Carton length |
200mm-500mm |
|
|
Table height |
1000mm-1100mm |
|
|
speed |
1-5box/min |
|
|
Power supply |
220V 56/60Hz |
|
|
Air compressor |
5.5-6kg/cm2 |
|
|
Machine weight |
1100kg |
|
|
Overall dimension |
L2100×W1300×H1900mm |

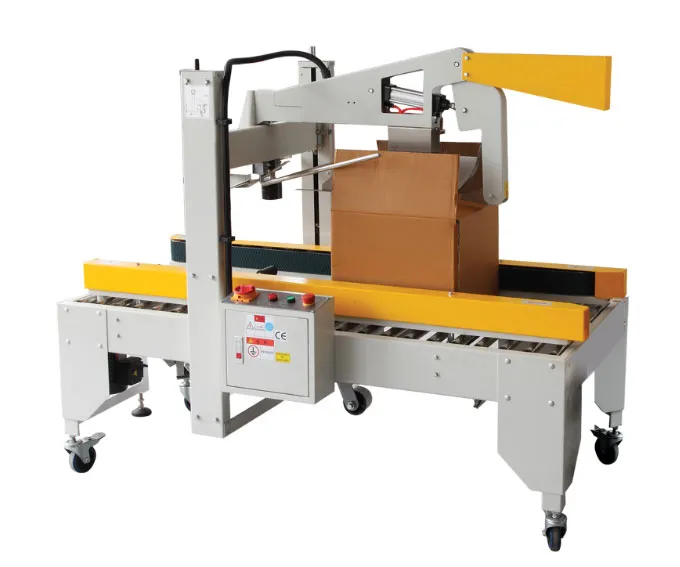

Carton Sealing Machine
|
Carton Width |
150-500mm |
 |
|
Carton Height |
150-575mm |
|
|
Carton Length |
500-600mm |
|
|
Table Height |
600-750mm |
|
|
Overall Dimension |
L1830×W835×H1640mm |
|
|
Sealing Speed |
10-15box/min |
|
|
Electric |
220V 50/60Hz |
|
|
Air Pressure |
5.5-6kg/cm2 |
|
|
Suitable Tape |
W(48,60,72)mm×L1000y |
|
|
Weight |
150KGS |
Technical Parameter
Carton Forming Machine
|
Carton Width |
150-510mm |
|
|
Carton Height |
100-500mm |
|
|
Carton Length |
200-800mm |
|
|
Overall Dimension |
L2200×W2100×H1500mm |
|
|
Sealing Speed |
10-15box/min |
|
|
Electric |
220V/380V 50/60Hz |
|
|
Air Pressure |
5.5-6kg/cm2 |
|
|
Suitable Tape |
W(48,60,72)mm×L1000y |
|
|
Weight |
400KGS |
Automatic Carton Filling Machine
|
Carton width |
150mm-500mm |
|
|
Carton height |
100mm-350mm |
|
|
Carton length |
200mm-500mm |
|
|
Table height |
1000mm-1100mm |
|
|
speed |
1-5box/min |
|
|
Power supply |
220V 56/60Hz |
|
|
Air compressor |
5.5-6kg/cm2 |
|
|
Machine weight |
1100kg |
|
|
Overall dimension |
L2100×W1300×H1900mm |
Carton Sealing Machine
|
Carton Width |
150-500mm |
|
|
Carton Height |
150-575mm |
|
|
Carton Length |
500-600mm |
|
|
Table Height |
600-750mm |
|
|
Overall Dimension |
L1830×W835×H1640mm |
|
|
Sealing Speed |
10-15box/min |
|
|
Electric |
220V 50/60Hz |
|
|
Air Pressure |
5.5-6kg/cm2 |
|
|
Suitable Tape |
W(48,60,72)mm×L1000y |
|
|
Weight |
150KGS |
Standard Features
 |
 |
 |

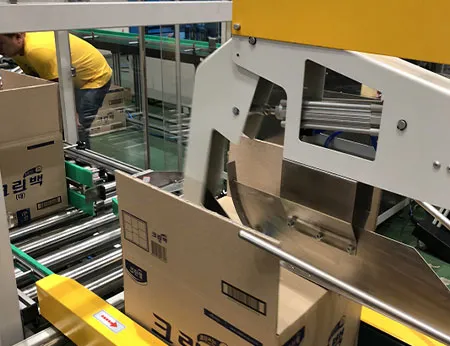

| Carton filling machine | Carton machine touch screen | Close carton |
 |
 |
 |

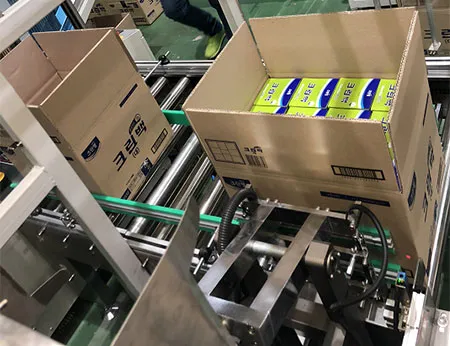

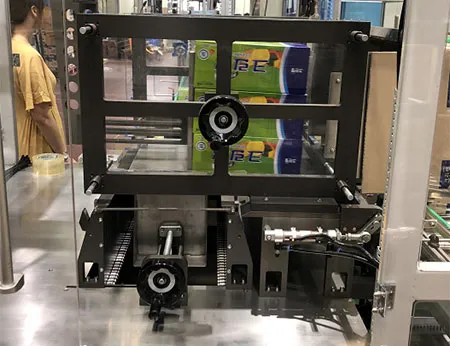

| Collect cartons | Filling product into carton | Output |
 |
 |
 |

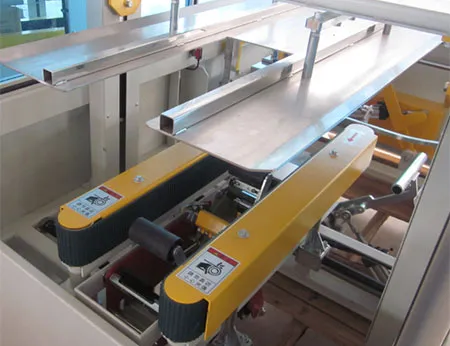

| Puch into carton | Seal the bottom of box by tape | Seal the top of carton by tape |
 |
||
| Suction carton |
Standard Features
|
|
|
| Carton filling machine | Carton machine touch screen | Close carton |
|
|
|
| Collect cartons | Filling product into carton | Output |
|
|
|
| Puch into carton | Seal the bottom of box by tape | Seal the top of carton by tape |
|
||
| Suction carton |
