Model:KXZ-100B
Automatic Soap Cartoning Machine
Encasing Speed: 30-80 boxes/min
Box quality requirement: 250-350g/m2
Box dimension range: (55-200)mm×(30-90)mm×(15-60)mm
| Watch The Video |  |
Encasing Speed: 30-80 boxes/min
Box quality requirement: 250-350g/m2
Box dimension range: (55-200)mm×(30-90)mm×(15-60)mm
| Watch The Video | |
Products Description
The KXZ - 100B Automatic Soap Cartoning Machine is tailor - made for soap packaging. It operates at high speed, accurately placing various - sized soaps into cartons. Its robust build ensures continuous, reliable operation in high - volume production.
In large - scale soap production lines, the KXZ - 100B shines. For instance, it efficiently packages bar soaps in standard - sized cartons, reducing labor costs and enhancing packaging consistency.
Products Description
The KXZ - 100B Automatic Soap Cartoning Machine is tailor - made for soap packaging. It operates at high speed, accurately placing various - sized soaps into cartons. Its robust build ensures continuous, reliable operation in high - volume production.
In large - scale soap production lines, the KXZ - 100B shines. For instance, it efficiently packages bar soaps in standard - sized cartons, reducing labor costs and enhancing packaging consistency.
Technical Parameter
|
Encasing Speed |
30-80 boxes/min |
|
|
Box |
Quality requirement |
250-350g/m2 (according to its dimension to confirm) |
|
Dimension range (L×W×H) |
(55-200)mm×(30-90)mm×(15-60)mm can customize according to your requirement |
|
|
Compressed air |
Working pressure |
≧0.6mpa |
|
Air consumption |
20m3/h |
|
|
Power supply |
380V 50Hz |
|
|
Motor power |
1.5KW |
|
|
Machine dimension (L×w×H) |
3800*1100*1900mm |
|
|
Machine weight |
1200KGS |
|
Technical Parameter
|
Encasing Speed |
30-80 boxes/min |
|
|
Box |
Quality requirement |
250-350g/m2 (according to its dimension to confirm) |
|
Dimension range (L×W×H) |
(55-200)mm×(30-90)mm×(15-60)mm can customize according to your requirement |
|
|
Compressed air |
Working pressure |
≧0.6mpa |
|
Air consumption |
20m3/h |
|
|
Power supply |
380V 50Hz |
|
|
Motor power |
1.5KW |
|
|
Machine dimension (L×w×H) |
3800*1100*1900mm |
|
|
Machine weight |
1200KGS |
|
Standard Features
 |
 |
 |

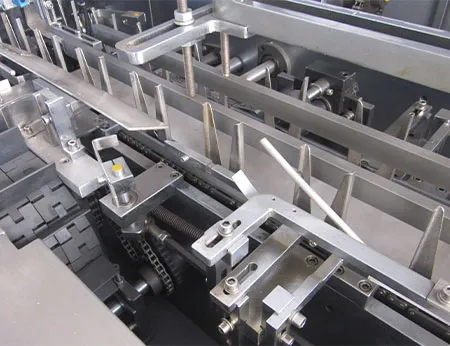

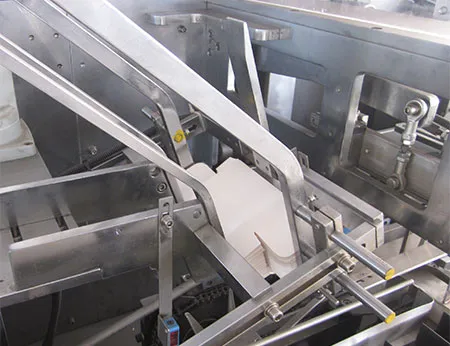

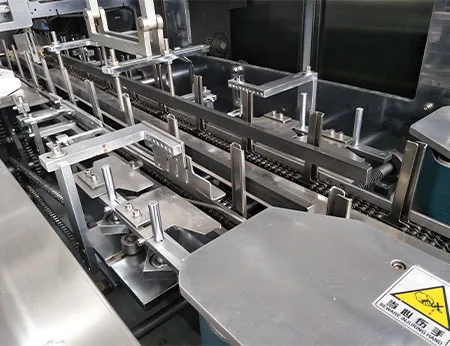

| Box loader | Box sealer and output | Box sealer |
 |
 |
 |

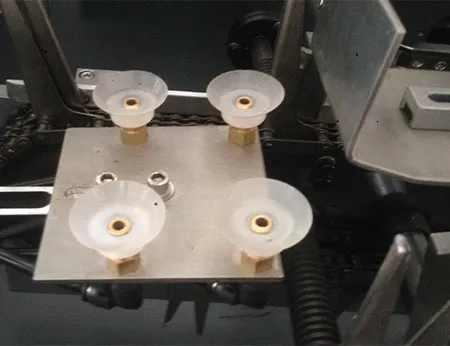

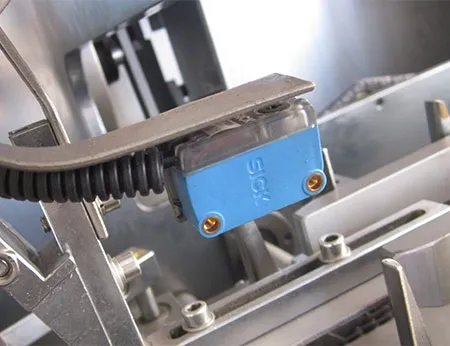

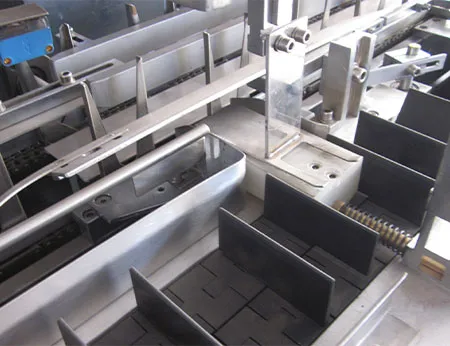

| Box suction | Pusher | Sensor |
Standard Features
|
|
|
| Box loader | Box sealer and output | Box sealer |
|
|
|
| Box suction | Pusher | Sensor |
